Resources
Amerock to Youngdale:
- To replace 2603 hinges – use Youngdale #3
- To replace 2604 hinges – use Youngdale #4
- To replace 2605 hinges – use Youngdale #5
- To replace 2606 hinges – use Youngdale #6
- To replace 2665 hinges – use Youngdale #65
| Number | Model # | Application |
| “3” | 2603 | 1/4 in Overlay, 1/2 in. think door |
| “4” | 2604 | 3/8 in inset, 3/4 in thick door |
| “5” | 2605 | 1/4 in Overlay, 5/8 in to 3/4 in thick door |
| “6” | 2606 | 1/2 in Overlay, 5/8 in to 3/4 in thick door |
| “65L” or “65R” | 2665L or 2665R | 1/2 in Overlay, Left and Right |

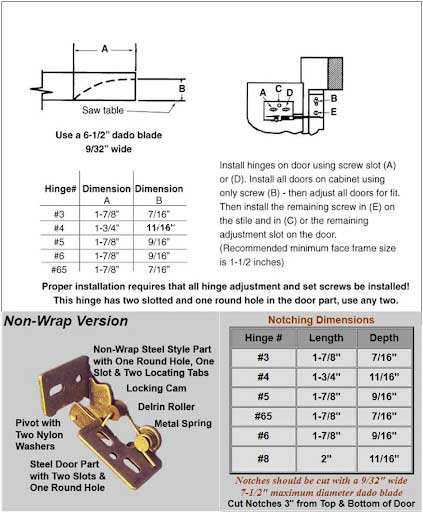

Mighty Mite Clip Install Directions:
Differences in Wrap & Non-Wrap Hinges
- D stands for door side.
- S stands for style (cabinet frame) side.
Wrap Hinges – the style (the bracket that mounts to the frame of the cabinet frame), there is a single slot.
Non-Wrap Hinges – the style (the bracket that mounts to the frame of the cabinet frame) has a slot and a single hole.
